Description

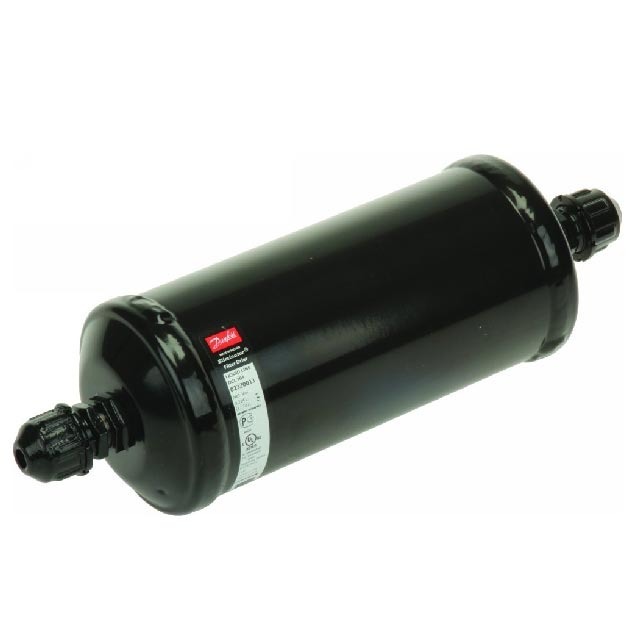

Drier 3/4" Flare DCL 306 Liquid Line
DRIER DCL306 3/4 FL
Price (INC VAT)
ZAR 643.55
Product number:
1204007012
OEM Reference:
023Z0156
| Product Group : | Liquid/Suction/Bi-Flow |
|---|
General
| Product Group : | Liquid/Suction/Bi-Flow |
|---|
Additional Info
| Family : | DCL |
|---|
Capacity
| Acid Capacity : | 6.23 g |
|---|---|
| Capacity : | R32: 89.9 kW, R134a: 59.0 kW, R404A: 41.5 kW, R407C: 60.4 kW, R410A: 61.4 kW, R507: 40.2 kW |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Inlet Connection Size : | 3/4 in, 19.0 mm |
|---|---|
| Inlet Type : | FLARE |
| Outlet Connection Size : | 3/4 in, 19.0 mm |
| Outlet Type : | FLARE |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 30 cu.in. |
| Flow Capacity kW : | R32: 89.9, R134a: 59.0, R290: --, R404A: 41.5, R407C: 60.4, R410A: 61.4, R507: 40.2 |
| Shell Volume : | 0.72 L |
| Solid Core Surface : | 52.70 in², 340 cm² |
| Solid Core Volume : | 15.77 in³, 258 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 748, R134a: 888, R290: --, R404A: 925, R407C: 863, R410A: 804, R507: 969 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 688, R290: -- |
General Information
| Activated Alumina / Molec. Sieve. : | 20/80 % |
|---|---|
| Model Number : | 023Z0156 |
| Specification Key : | DCL 306 |
| Type : | Liquid line filter drier |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428159234 |
| Gross Weight : | 1.588 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Net Weight : | 1.45 kg |
|---|---|
| Volume : | 0.464 L |
| Weight : | 1.45 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
