Description
LLZ015T4A

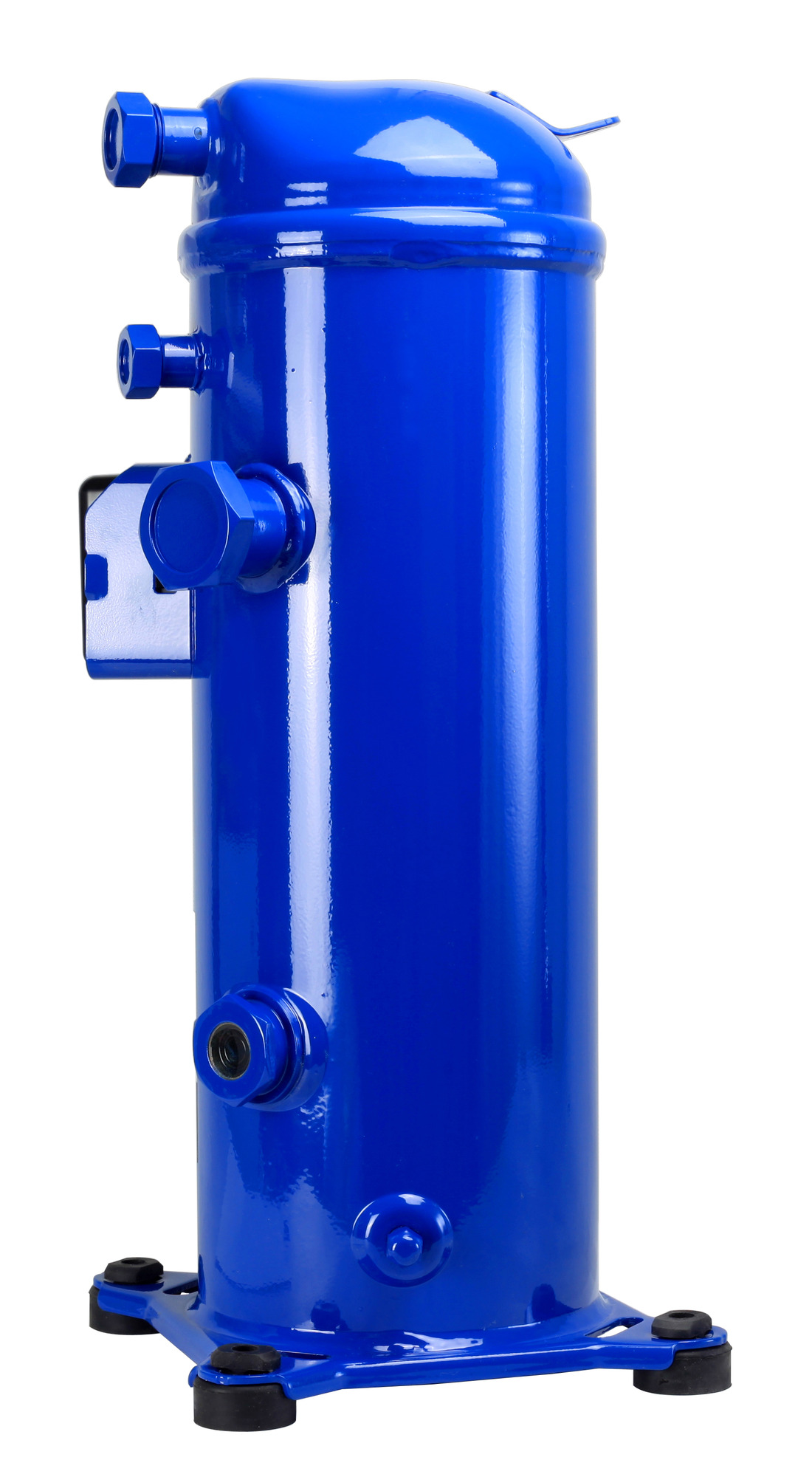

COMPRESSOR LLZ015T4LQ9A, EURO M-PACK
Price (INC VAT)
ZARÂ 29,215.06
Product number:
1611533112
OEM Reference:
121L9537
| Product Group : | Scroll |
|---|
General
| Product Group : | Scroll |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 380-415/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 83.50 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Rotolock |
|---|---|
| Discharge Connection Height : | 458 mm |
| Discharge Line Connection Size : | 1 in |
| Rotolock Discharge Line Connection : | 1 in |
| Rotolock Suction Connection : | 1 1/4 in |
| Suction Connection Height : | 309 mm |
| Suction Line Connection Size : | 1 1/4 in |
Cooling Capacity
| Cooling Capacity : | 14.68 kBtu/h |
|---|---|
| Cooling Capacity at 50Hz : | 3.5 kW |
| Cooling Capacity at 60Hz : | 4.3 kW |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP22 |
| LRA : | 88.5 A |
| MCC : | 15 A |
| Phase : | 3 |
| RLA : | 9.6 A |
| Voltage : | 380/415/460 V |
General Information
| Colour : | Blue |
|---|---|
| Model Number : | LLZ015T4LQ9A |
| Type : | LLZ |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Diameter : | 184 mm |
|---|---|
| Height : | 485 mm |
| Length : | 232 mm |
| Net Weight : | 42 kg |
| Weight : | 42.00 kg |
| Width : | 232 mm |
Oil
| Oil Charge : | 1.62 L |
|---|---|
| Oil Equalization : | None |
| Oil Type : | POE |
Pressure
| Higher Active Pressure : | 28.5 Bar |
|---|---|
| Lower Active Pressure : | 25.4 Bar |
Refrigerant
| Max Refrigerant Charge : | 4.54 kg |
|---|---|
| Refrigerant : | R404A, R448A, R449A, R452A |
| Refrigerant Charge : | 4.54 kg |
