Description

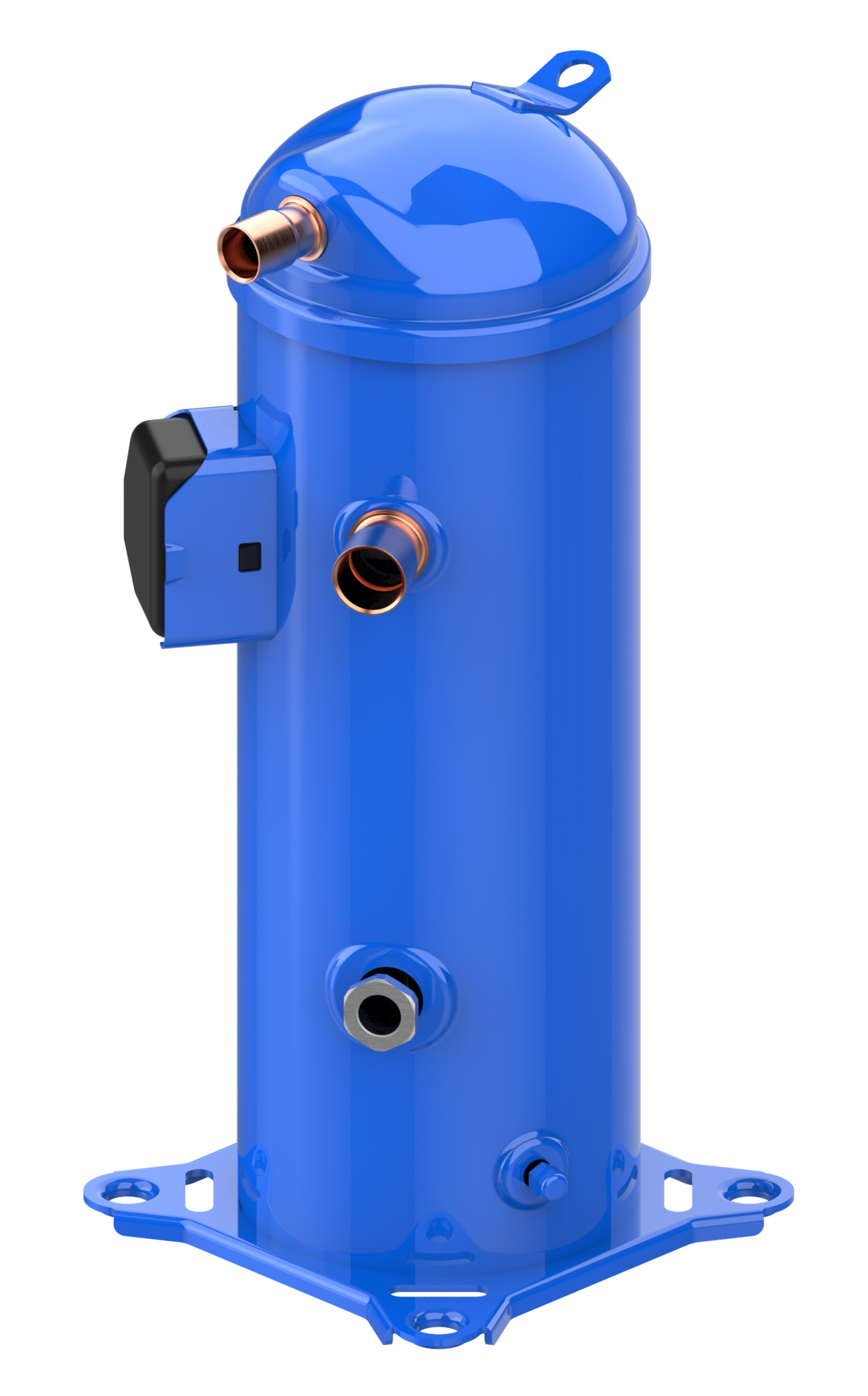

COMPRESSOR MLZ058T4LC9A, EURO M-PACK
OPTYMA COMP FOR MPXM125-380V
Price (INC VAT)
ZARÂ 25,721.77
Product number:
1611534612
OEM Reference:
121L8653
| Product Group : | Scroll |
|---|
General
| Product Group : | Scroll |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 380-415/3/50-460/3/60 V/Ph/Hz |
|---|---|
| Stroke Volume : | 125.95 cm³ |
| Swept Volume : | 125.95 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 509 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Line Connection Size : | 7/8 in |
| Suction Connection Height : | 369 mm |
| Suction Connection Pipe Size : | 1 1/8 in |
| Suction Line Connection Size : | 1 1/8 in |
Cooling Capacity
| Cooling Capacity at 50Hz : | 12.9 kW |
|---|---|
| Cooling Capacity at 60Hz : | 16.3 kW |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP22 |
| LRA : | 95 A |
| MCC : | 20 A |
| Phase : | 3 |
| Power Supply : | 415-460/3/50-60 V/Ph/Hz |
| RLA : | 12.8 A |
| Voltage : | 380/415/460 V |
General Information
| Colour : | Blue |
|---|---|
| Model Number : | MLZ058T4LC9A |
| Technology : | Scroll |
| Type : | MLZ058T4LC9A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Diameter : | 185 mm |
|---|---|
| Height : | 536 mm |
| Net Weight : | 44 kg |
| Weight : | 44.00 kg |
Motor
| Motor Protector : | Internal overload protector |
|---|
Oil
| Oil Charge : | 2.66 L |
|---|---|
| Oil Equalization : | None |
| Oil Type : | POE |
Pipes
| Pipe Diameter : | 7/8 in |
|---|
Pressure
| Higher Active Pressure : | 31.1 Bar |
|---|---|
| Lower Active Pressure : | 26.2 Bar |
Refrigerant
| Max Refrigerant Charge : | 7.26 kg |
|---|---|
| Refrigerant : | R134a, R404A, R407A, R407F, R448A, R449A, R452A, R513A |
| Refrigerant Charge : | 7.26 kg |
